Name: Water Purifier Beer Filter Industrial pp Folded 10 Inch RO Filter for Industrial Reverse Osmosis Water Filtration
Brand: Shandong Qingqingquan Environmental Technology Co., Ltd.
Availability: InStock

Home Products pleated filter element

Water Purifier Beer Filter Industrial pp Folded 10 Inch RO Filter for Industrial Reverse Osmosis Water Filtration

Product Details:

Place of Origin:	China

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PP Folded Film	Warranty:	Unavailable
Productivity:	500L/Hour	Weight (kg):	0.21 Kg
Product Name:	Microporous Pleated Filter Element	Application:	Filtration
Type:	Water Filter Parts	Usage:	Water Treament
Function:	Filtering Suspended Matter	Keywords:	RO Water Filtration
Filter Media:	Depth Polypropylene	Hardware:	All Polypropylene
Length:	10'',20'',30'',40''	Removal Rating:	0.11/0.22/0.45/1/3/5/10/25/50/75/100 Um
Condition:	New	Applicable Industries:	Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:	None	Warranty Of Core Components:	Not Available
Marketing Type:	High Quality Pleated Pp Sedimentation Filter	Material:	Carton
Weight:	215g	Size:	69mm69mm315mm

Product Description

The microporous pleated filter element is developed by advanced technology, and the ultra-fine polypropylene fiber membrane and
non-woven fabric or (wire mesh) are folded and formed as the support layer. The filter element shell, center rod and end cap are
all processed by hot melt welding technology, without any adhesive, no leakage and no secondary pollution.
Product features of microporous pleated filter element 1. Excellent chemical compatibility, suitable for filtering strong
acids,alkalis and organic solvents
2. The filter membrane is folded deep filtration, and the membrane filtration area is large.
3. Low differential pressure, strong dirt holding capacity and long service life
4. Progressive aperture change provides ultra-high dirt holding capacity
Technical parameters:
Size: outer diameter 68mm, inner diameter 30-32mm
Length: 5, 10, 20, 30, 40 inches
Accuracy: 0.1um, 0.22um,0.45um, 1um, 3um, 5um, 10um, 20um, 50um
Part material:
1. Filter membrane: PP (polypropylene)
2. Support/diversion layer: PP
3. Shell/center skeleton/port: PP, stainless steel
4. Sealing ring: silicone rubber, ethylene propylene rubber, dingqing rubber, fluorine rubber, Teflon, FEP wrapped Viton

Specification

Material	Membrane	PP
	Brand Name	Core	PP
	Warranty	O ring/Gasket	PP
Specifications	Pore size(um)	0.1,0.2,0.45,0.65,1,3,5…..Micron
	Keyword	Outer Diameter(OD)	69mm (can be decided by client)
	Usage	Length(inch)	5"10"20"30"40"(can be decided by client)
Technical data	Max differential pressure	Forward-75psi (5.1 bar) at 25°C Forward-25psi(1.7bar) at 80°C Reverse-30 psi(2.0bar) at 25 °C
	Place of Origin	Recommended change out	1.5-2.0bar
	After-sales Service	Max temperature	80°C
	Product name	Sterilization	5times,20 minutes cycles @121°C

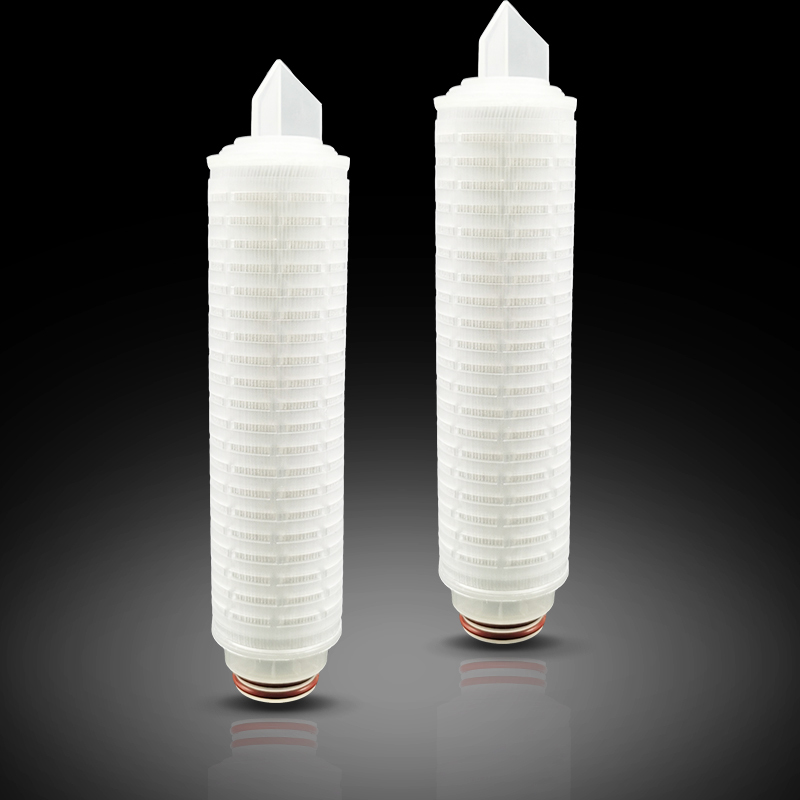

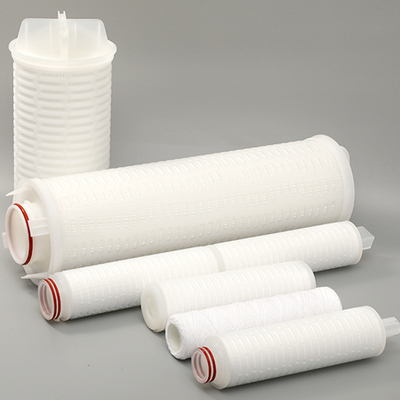

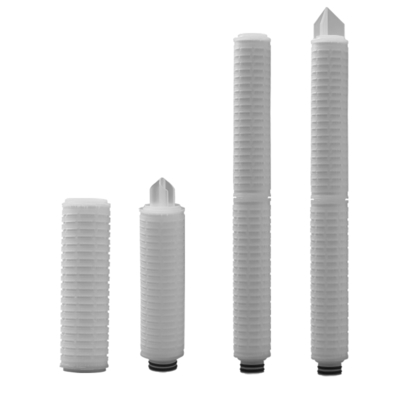

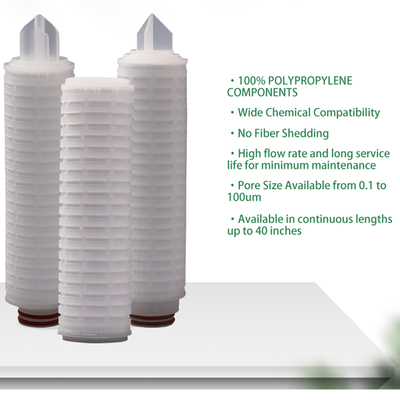

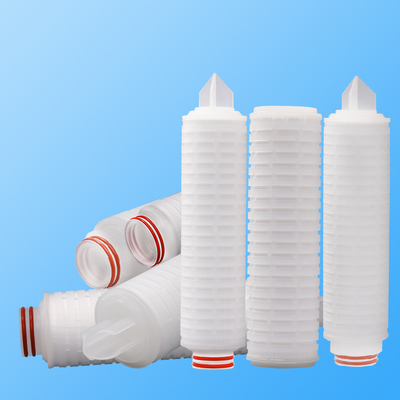

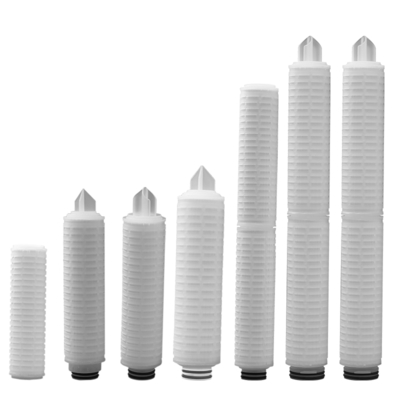

Product Images

Application field

1)food and drinks

2)Chemicals and Petroleum

3)Pharmaceutical

4)Process water treatment

5)Pre-filtration of exhaust and gases

Packing & Delivery

Carton

Company Profile

Shandong Qingqingquan Environmental Technology Co., Ltd. is a high-tech environmental protection enterprise specializing in household and commercial water purifiers, reverse osmosis pure water production equipment, water purification equipment accessories and related supporting products. Plant area of 3000 square meters. The company strictly implements the ISO 9001 quality management system certification standard, and has obtained CE certification, and solves various water treatment problems for customers with high-quality products, reasonable prices and sincere service. At present, it has become a domestic supplier of water treatment equipment with a certain scale and strength. The products are sold to more than 30 provinces, municipalities and autonomous regions across the country, and exported to Southeast Asia, the Middle East, Africa, South America and other countries and regions, and are deeply trusted by users. Why choose us?

1.10 years experience in water treatment.

2. Excellent partner

3.Have an excellent technical team

4. Perfect after-sales service team

5. International management system

6. Fast delivery

Certifications

FAQ

1. What products do you mainly deal in??
We are mainly engaged in household and commercial water purifiers, reverse osmosis purified water production equipment, water purification equipment accessories, mineral water equipment, drinking water, boiler softened water, industrial ultrapure water, laboratory ultrapure water, catering and hotel water, EDI Equipment, ion exchange mixed bed equipment, filling production line, school drinking water, landscape swimming pool water treatment equipment, farm purification equipment, sewage purification equipment.

2. What is your lead time?
It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity,and about 20 days for large quantity.

3.What is your payment term?
T/T,Western Union,MoneyGram,and Paypal.This is negotiable

4. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
