Name: Water Solenoid Electric Valve 24 V/220V 1/2" 3/4" Electric Solenoid Valve
Brand: Shandong Qingqingquan Environmental Technology Co., Ltd.
Availability: InStock

Home Products Water treatment equipment accessories

Water Solenoid Electric Valve 24 V/220V 1/2" 3/4" Electric Solenoid Valve

Product Details:

Place of Origin:	Zhejiang, China

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Electric Solenoid Valve	Warranty:	1 Year
Productivity:	500L/Hour	Weight (kg):	0.25 Kg
Product Name:	Electric Solenoid Valve	Applicable Industries:	Water Trearment, Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops
Material:	Copper, Carton	Type:	Pure Water Treatment System
Function:	Cut Off Water	Showroom Location:	None
Warranty Of Core Components:	1 Year	Marketing Type:	High Quality Electric Solenoid Valve
Weight:	Depends On Capacity	Size:	Depends On Capacity

Specifications

Model	2W025-06	2W025-08	2W040-10	2WH012-06	2WH012-08	2WH020-10
Working medium							Air Water Oil Gas
Acting type							Direct acting type
Control style							Normal close
Orifice			2.5mm			4mm	1.2mm	2mm
CV Value			0.23			0.6	0.05	0.15
Joint size	G1/8	G1/4	G3/8	G1/8	G1/4	G3/8
Working pressure			Air,water,oil:0-0.7Mpa					Air,water,oil:0-2.0Mpa
Max.pressure			1.0Mpa			3.5Mpa
Working temperature			-5~80℃(the temperature can reach -5~150℃ if change the seal)
Valve body			Brass
Seal material			NBR,EPDM,FKM

Model

2W160-10

2W160-15

2W200-20

2W250-25

2W350-35

2W400-40

2W500-50

Working medium

Air, water, oil, gas

Motion pattern

Direct action type

Type

Normally Closed or Normally Open

Aperture of flow rate(mm)

4.8

7.6

Port size

3/8"

1/2"

3/4"

1-1/4"

1-1/2"

Operation fluid viscosity

Below 20 CST

Working pressure

Water/Oil:0~5 bar, Air/Gas:0~7 bar

Max.pressure

10.5 bar

Temperature range

-5~80 degrees centigrade

Standard voltage

DC12V, DC24V, AC24V, AC36V, AC110V, AC220
V, AC380V

Votage range

Plus or minus 10%

Material of valve body

Brass/stainless steel/plastic

Material of oil seal

NBR,EPDM or FKM

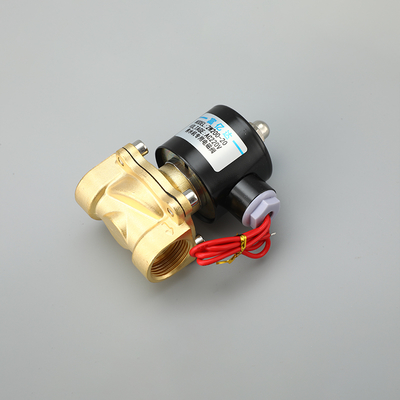

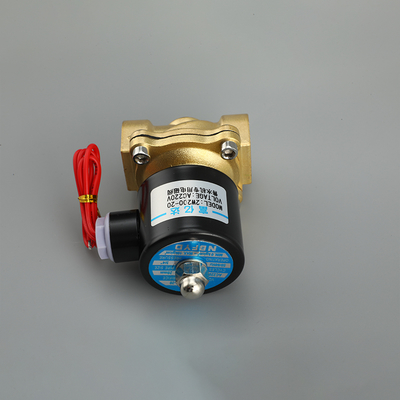

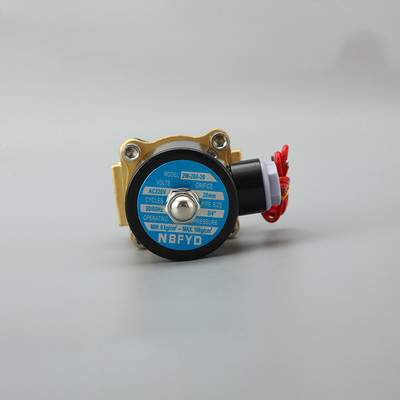

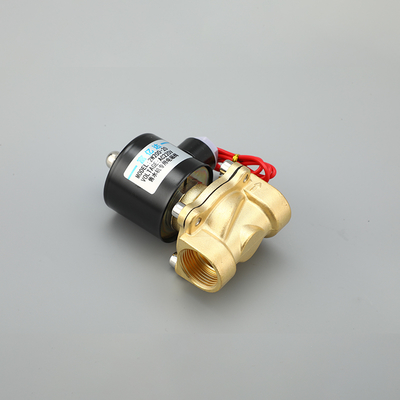

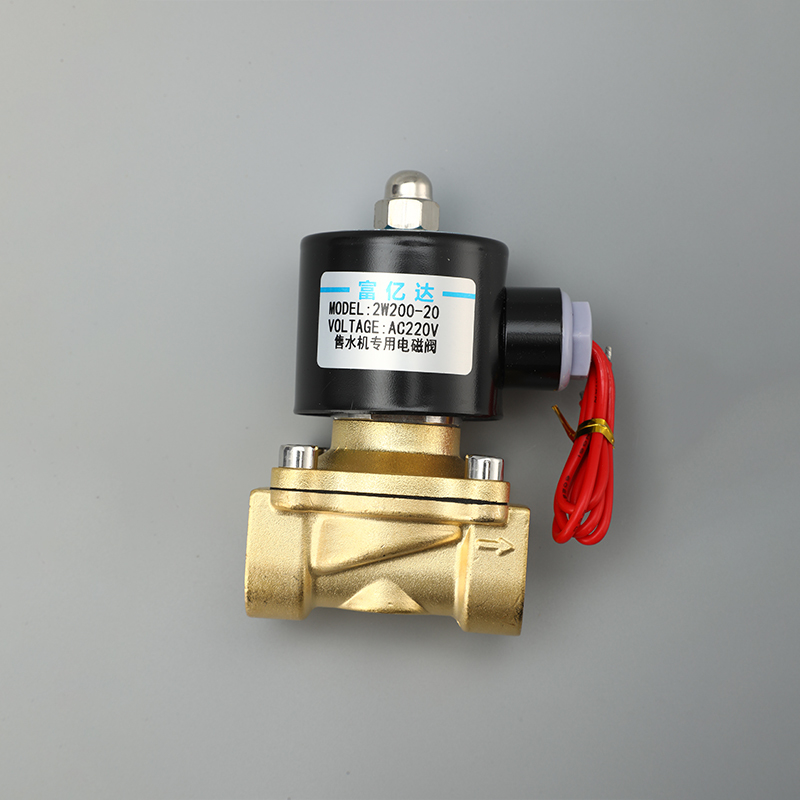

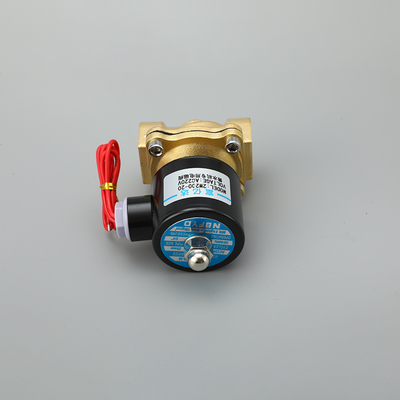

Product Images

Packing & Delivery

Carton

Application field

1)food and drinks

2)Chemicals and Petroleum

3)Pharmaceutical

4)Process water treatment

5)Pre-filtration of exhaust and gases

Company Profile

Shandong Qingqingquan Environmental Technology Co., Ltd. is a high-tech environmental protection enterprise specializing in household and commercial water purifiers, reverse osmosis pure water production equipment, water purification equipment accessories and related supporting products. Plant area of 3000 square meters. The company strictly implements the ISO 9001 quality management system certification standard, and has obtained CE certification, and solves various water treatment problems for customers with high-quality products, reasonable prices and sincere service. At present, it has become a domestic supplier of water treatment equipment with a certain scale and strength. The products are sold to more than 30 provinces, municipalities and autonomous regions across the country, and exported to Southeast Asia, the Middle East, Africa, South America and other countries and regions, and are deeply trusted by users. Why choose us?

1.10 years experience in water treatment.

2. Excellent partner

3.Have an excellent technical team

4. Perfect after-sales service team

5. International management system

6. Fast delivery

Certifications

FAQ

1. What products do you mainly deal in??
We are mainly engaged in household and commercial water purifiers, reverse osmosis purified water production equipment, water purification equipment accessories, mineral water equipment, drinking water, boiler softened water, industrial ultrapure water, laboratory ultrapure water, catering and hotel water, EDI Equipment, ion exchange mixed bed equipment, filling production line, school drinking water, landscape swimming pool water treatment equipment, farm purification equipment, sewage purification equipment.

2. What is your lead time?
It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity,and about 20 days for large quantity.

3.What is your payment term?
T/T,Western Union,MoneyGram,and Paypal.This is negotiable

4. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
