Name: 1 Inch 0.3-6L/Min Hall Flowmeter Flow Meter Switch Counter Customizable 1/4 3.5-24V Water Flow Sensor
Brand: Shandong Qingqingquan Environmental Technology Co., Ltd.
Availability: InStock

Home Products household water purifier

1 Inch 0.3-6L/Min Hall Flowmeter Flow Meter Switch Counter Customizable 1/4 3.5-24V Water Flow Sensor

Product Details:

Place of Origin:	Zhejiang, China

Contact Now

Detailed Product Description

Warranty:	1 Years	Customized Support:	OEM
Type:	Variable Area Water Flowmeters	Product Name:	2 Points Quick Connect Water Flow Sensor
Product Model:	YF-S402B	Use Medium/temperature:	<60℃
Flow Range:	0.2~10L/MIN	Start Water Flow:	<0.2L/min
Starting Water Pressure:	<0.1Mpa	Maximum Water Pressure:	0.8Mpa
Working Current:	0.5-1.5mA

Product Description

Wiring method: red IN to positive pole Yellow OUT signal output line Black GND Connect to negative pole Basic parameters 2 points quick connect water flow sensor Product model YF-S402B 1 Use medium/temperature: water, tap water standard, long-term use temperature is not more than 60 ℃ 2 Flow range: 0.3~6L/min 3 Water pressure resistance: 0.7MPa 4 Accuracy: ±3~5% 5 Voltage and current: DC3.5～24V (general purpose), Current: ≤10mA 6 Insulation resistance: ＞100MΩ 7 Output pulse high level: greater than DC 4.5V (input voltage DC 5V) 8 Output pulse low level: less than DC 0.5V (input voltage DC 5V) 9 Output pulse duty cycle: 50%±10% 10 Flow pulse characteristics: (32*Q)±3%, Q=L/Min±3% 11 Conversion of cumulative flow: 1 L water=1920pulse ±10

Automatic Liquid Packing Machine Main Parameters:

Model	YF-S402B
Product name	2 points quick connect water flow sensor
Connection size	1/4″
Flow range	0.3~6L/min

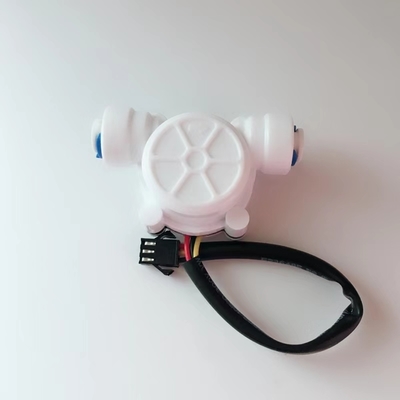

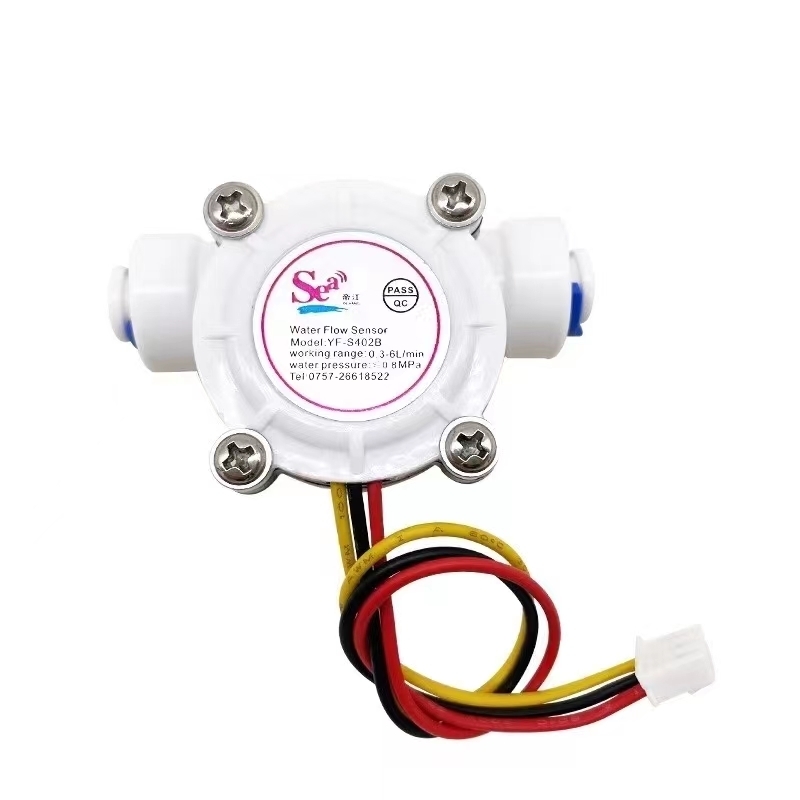

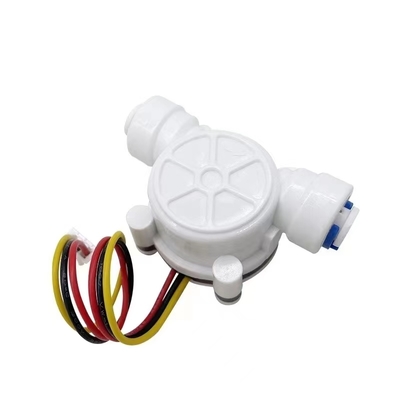

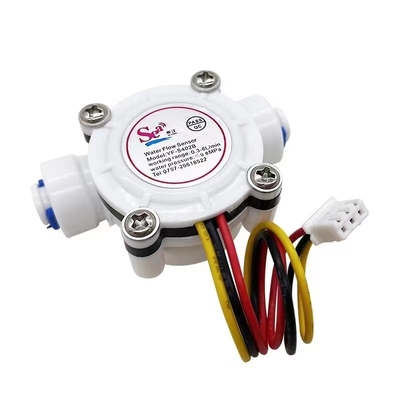

Product Images

Packing & Delivery

Carton

Company Profile

Shandong Qingqingquan Environmental Technology Co., Ltd. is a high-tech environmental protection enterprise specializing in household and commercial water purifiers, reverse osmosis pure water production equipment, water purification equipment accessories and related supporting products. Plant area of 3000 square meters. The company strictly implements the ISO 9001 quality management system certification standard, and has obtained CE certification, and solves various water treatment problems for customers with high-quality products, reasonable prices and sincere service. At present, it has become a domestic supplier of water treatment equipment with a certain scale and strength. The products are sold to more than 30 provinces, municipalities and autonomous regions across the country, and exported to Southeast Asia, the Middle East, Africa, South America and other countries and regions, and are deeply trusted by users.

Why choose us?

1.10 years experience in water treatment.

2. Excellent partner

3. Have an excellent technical team

4. Perfect after-sales service team

5. International management system

6. Fast delivery

After-sale service:

(1) 100% factory tested beforeshipment

(2) 1 year quality guarantee

(3) 2 years of trouble-free service

(4) Solve the problem within 24 hours

Certifications

FAQ

1. What products do you mainly deal in??
We are mainly engaged in household and commercial water purifiers, reverse osmosis purified water production equipment, water purification equipment accessories, mineral water equipment, drinking water, boiler softened water, industrial ultrapure water, laboratory ultrapure water, catering and hotel water, EDI Equipment, ion exchange mixed bed equipment, filling production line, school drinking water, landscape swimming pool water treatment equipment, farm purification equipment, sewage purification equipment.

2. What is your lead time?
It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity,and about 20 days for large quantity.

3.What is your payment term?
T/T,Western Union,MoneyGram,and Paypal.This is negotiable

4. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
